Tool Hire

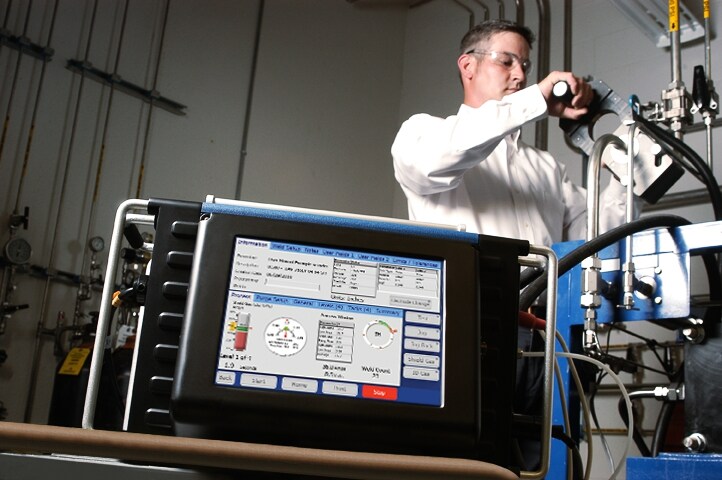

Orbital Welding Systems

CHECK AVAILABILITY

   Features include:

• High-resolution 12.1 in. colour SVGA industrial touch screen
• Integrated mass flow controller automatically controls OD shield gas throughout the weld cycle
• Up to 200 A peak output capability
• Multiple weld procedure data entry options
• Real-time monitoring and recording of weld output performance
• Low EMI arc start technology
• Multiple language capability

 Multi-headed Hydraulic Swaging Units

CHECK AVAILABILITY

   The Swagelok MHSU offers the following features:

• Provides Swagelok tube fitting connections that are 100% gaugeable upon initial installation
• Is available in two sizes: 1/2" to 1" and 1" to 2"
• Places no initial strain on nut or fitting body threads or on body seal surfaces
• Must be used to install 1-1/4", 1-1/2" and 2" Swagelok tube fittings
• Is standard with a tube marking feature to indicate when tube is properly bottomed in the unit
• Fits neatly in a rugged, plastic carrying case for field use
• Reduces assembly and installation time and operator error

Hand Tube Benders

CHECK AVAILABILITY

• The hand tube bender is available in 1/8", 1/4", 5/16" 3/8" and 1/2" tubing sizes
• Clevis handle design provides enhanced leverage for bends greater than 90^o
• Roll dies reduce bending force and tube ovality, as compared to conventional slide block design
• 1 to 180^o bending range

Bench-top Tube Benders

CHECK AVAILABILITY

• 1 to 180^o bending range
• Bends fractional and metric tubing
• 1/4" to 1 1/4" outside diameter tubing range and 6mm to 30mm tube
• CE compliant
